MOQ: | 3000 square |
Price: | Negotiable |
Standard Packaging: | Packed in carton, 70 pieces per pallet |
Delivery Period: | 8 days-28 days |
Payment Method: | T/T |
Supply Capacity: | 1900000㎡/moth |

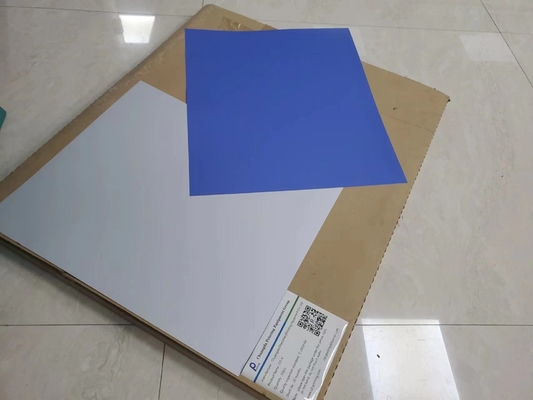

Wash free CTP plate, double layer CTP plate, printed CTP plate
The CTP plate without processing is a new type of environmentally friendly printing product that can be directly printed on the machine without any processing steps after exposure imaging. This printing plate has excellent dot reduction performance, large exposure range, long latent film stability, good platemaking stability, and high printing durability
Plate | CTP plate without rinsing |
Application | High quality run sheet fed, heat set web, offset packing (non UV) andshort-run UV application |
Substrate | Electrochemical grained and anodized aluminum substrate |
Gauge | 0.15mm,0.2mm,0.3mm and 0.4mm availability in selected regions. Please contact your local supplier products |
Spectral sensitivity | 800-850nm |
Platesetters | compatible with platesetters from major suppliers |
Laser energy required | 150mJ/cm2,dependent on image type, configuration and resolution |
Resolution | 1-99%@200lpi, dependent upon capability of imaging device |
FM capability | 20-micron stochastic, dependent upon imaging device capabilities, print application, and screening algorithms. |
Run length | Up to 200,000 impressions with head-set/commercial cold-setweb presses Up to 100,000 impressions with sheet fed presses Up to 50,000 impressions for offset packaging(non UV) Up to 30,000 impressions for UV-ink applicationsDependent upon image resolution, press, press chemistry, ink, andpaper conditions |
Safelight | The plate can be handled before and after imaging safely for: safelight limits @ 800 lux 1 hour under daylight lamp without natural light. 4 hours under yellow light |
Shelf life | 20 months, under recommended storage conditions |
Storage conditions | Temperature:18-25OCRH: 30-60% |
