830nm Automatic CTCP Plate Making Machine offset plate maker

830nm Automatic CTCP Plate Making Machine offset plate maker
830nm Automatic CTCP Plate Making Machine offset plate maker 830nm Automatic CTCP Plate Making Machine offset plate maker

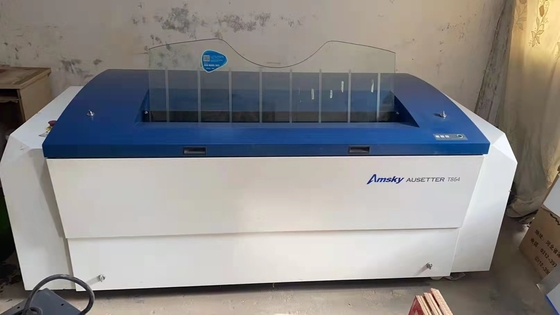

Large Image :  830nm Automatic CTCP Plate Making Machine offset plate maker

Product Details:
Place of Origin: GUANGZHOU
Brand Name: Amsky
Model Number: U848
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden box
Delivery Time: 14 days
Payment Terms: T/T
Supply Ability: 20 units/month

830nm Automatic CTCP Plate Making Machine offset plate maker

Description
Machine Features: Appearance Color Can Be Customized Number Of Lasers: 48 Or 64
Maximum Operating Range: 1130*880mm Plate Making Speed: Maximum Size, 29 Plates Per Hour
Machine Details: Full Set Of Machines, Permanently Unlocked Plate: CTCP Plate
High Light:

Automatic CTCP Plate Making Machine

,

830nm CTCP Plate Making Machine

,

830nm offset plate maker

UVctp plate making machine ,CTCP plate making machine ,computer plate machine ,offset CTCP plate making machine

Basic parameters of the machine:

Maximum production size: 1130*880mm,

Minimum production size: 400*350mm

resolution option: the highest precision can reach 12,800dpi in the circumferential direction)

Repeatability: ±0.01mm

Output interface: optical fiber interface

Environment: allowable temperature: 15-32℃, recommended temperature: 21-28℃, relative humidity: <70%

Technical Parameters
Model Thermal UV
T824 T832 T848 T864 T8128 U824 U832 U848 U864 U8128
NO.of lasers 24 32 48 64 128 24 32 48 64 128
Throughput(1130*800) 13 18 23 28 45 13 18 23 28 45
Max.Min.Format MAX:1160*940 MIN:400*350 MAX:1160*940 MIN:400*350
Laser source 830nm 405nm
Resoiution 2400DPI
Loading system Automatic,Semi-Auto(Optional Auto-loader)
Plate requirement CD. 0.15-0.4 (Thermal plate) CD. 0.15-0.4 UV plate
