CTCP printing machine ,UVCTP machine ,UVCTCP plate machine ,CTCP plate computer making machine

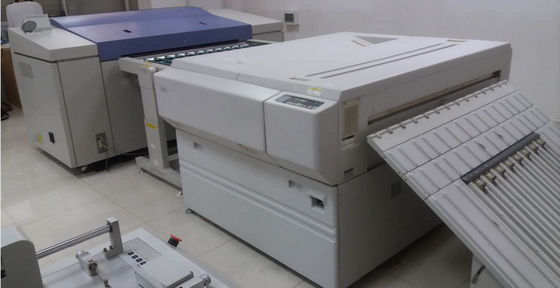

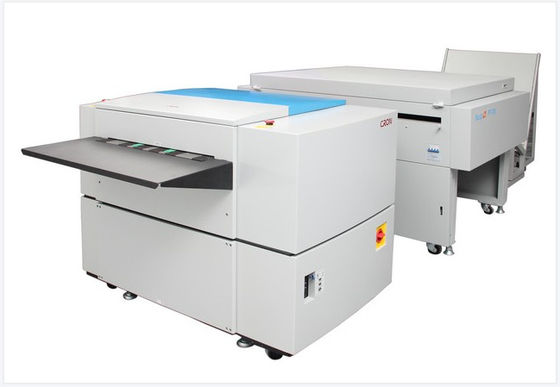

Large Image : CTCP printing machine ,UVCTP machine ,UVCTCP plate machine ,CTCP plate computer making machine

Product Details:

Place of Origin:	SHENZHEN
Brand Name:	PLATE-CD
Certification:	ISO9001
Model Number:	TPC4664

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$13000-$23000
Packaging Details:	Standard export wooden box
Delivery Time:	8 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

CTCP printing machine ,UVCTP machine ,UVCTCP plate machine ,CTCP plate computer making machine

Description

Plate Thickness:	0.15-0.28mm	Plate Type:	UV Plate /CTCP Plate
Output Resolution:	2400dpi	Application:	Plate Making
Condition:	New Or Used	Voltage:	220V
Highlight:	UVCTP plate printing machine , CTCP plate computer making machine , CTCP printing machine with warranty

CTCP printing machine ,UVCTP machine ,UVCTCP plate machine ,CTCP plate computer making machine

CTCP printing machine ,UVCTP machine ,UVCTCP plate machine ,CTCP plate computer making machine 0

product description
Using computer to plate CTP CTCP plate making machine
Chuangda (Shenzhen) Printing Equipment Co., Ltd., new computer board making machine and second-hand computer board making machine
Our state-of-the-art technology CTP equipment, coupled with customer-focused service and support that is second to none, enables printers to increase the quality and efficiency of output while reducing viable press runs, turnaround times and costs.
UV-CTP
Our UV CTP products are designed to provide flexibility and quality for all offset printing applications. its easy to repair
Platform and cost-effective design, combined with comprehensive automation options, provide fast and efficient UV plate production
Covers a variety of formats from A3 to VLF.

Supply Ability

Supply Ability: 20 Set/Sets per Month

Technical Parameters
Model	Thermal					UV
Model	T824	T832	T848	T864	T8128	U824	U832	U848	U864	U8128
NO.of lasers	24	32	48	64	128	24	32	48	64	128
Throughput(1130*800)	13	18	23	28	45	13	18	23	28	45
Max.Min.Format	MAX:1160940 MIN:400350					MAX:1160940 MIN:400350
Laser source	830nm					405nm
Resoiution	2400DPI
Loading system	Automatic,Semi-Auto(Optional Auto-loader)
Plate requirement	CD. 0.15-0.4 (Thermal plate)					CD. 0.15-0.4 UV plate
Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60HZ 5.5KVA
Work environment	Temperature:20-25℃,Humility:40%-80%

PLATE-CD www.cd-printing.com

Tag:

Contact Person: Summer

Tel: +8613728619758

Other Products

Computer UV CTP Machine , Semi Automatic CTCP Plate Making Machine

machine weight: 1400KG

Operation mode: Siamese, semi-automatic

Complete machine configuration: host, bridge, processor, computer, blower

Voltage parameters: 220V

Offset Printing CTP CTCP Plate Making Machine High Precision

Number of lasers: Customizable, 48 or 64

Voltage: 220v

maximum output: 1130*880

Laser model: Caplin

U848 0.15mm CTCP Plate Making Machine with 48 imported lasers

Dimensions: 1450*1320*1100mm

Voltage: 220v

room temperature: 18 degrees Celsius

Applicable plate model: CTCP plate

Laser Imaging UV CTP CTCP Plate Making Machine 220V High Durability

Laser parameter model: V6

total machine weight: 1600KG

Maximum output range: 1180*920mm

output speed: 24 sheets per hour

830nm Automatic CTCP Plate Making Machine offset plate maker

Machine Features: Appearance color can be customized

Number of lasers: 48 or 64

maximum operating range: 1130*880mm

plate making speed: Maximum size, 29 plates per hour
