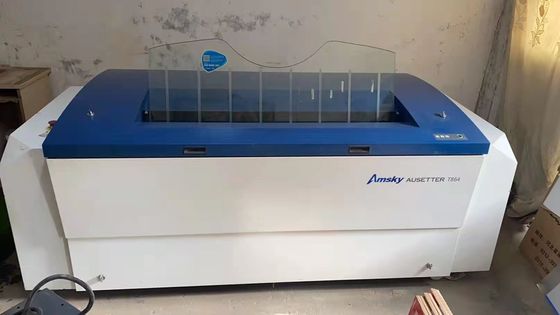

CTCP Computer Board Making Machine 28pcs/H 1160x960mm Maximum Output

Place of Origin SHENZHEN
Brand Name PLATE-CD
Model Number CD-64V
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard export wooden box
Delivery Time 8 days
Payment Terms T/T
Supply Ability 20 units/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Machine Manufacturing Time 2019 Years
Maximum Output 1160*960mm Output Quantity 28 Pcs /H
Weight 900KG Voltage 220V
High Light

CTCP Computer Board Making Machine


1160x960mm Board Making Machine


28pcs/H CTCP Printing Machine

Leave a Message
Product Description

CTCP board making machine, CTCP computer board making machine, UVCTP computer board making machine


Mode CD-32V CD-48V CD-64V CD-32R CD-48R CD-64R
Exposing Method External Drum
Imaging System 32-channel 48-channel 64-channel 32-channel 48-channel 64-channel
Discrete 400-410nm laser Discrete 830nm laser
Output Speed 16 plates/hour 24 plates/hour 28 plates/hour 16 plates/hour 24 plates/hour 28 plates/hour
1,030×800mm 2,400dpi
Plate Size Max.1,130×920mm,Min. 400×300mm
Exposing Size Max.1,130×904mm
Media Type UV plate, high-sensitive PS plate Thermal plate
Plate Thickness 0.15mm~0.3mm
Resolutions 2,400dpi
Repeatablity ±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C and 60% RH )
Interface USB2.0/USB3.0(Recommended option is USB2.0)
Plate Loading First manual, then autoload
Net Weight 900KG
Device Size 2,530×1,050×950mm(W×D×H)
Power supply Single phase:200V-240V; Max power(Peak value):4KW
Environment Recommended temperature: 21-25°C Allowable temperature: 18-26°C Humidity: <70%
