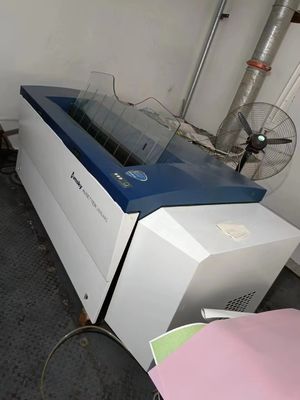

New or Used UV Type CTP Board Making Machine 30-150m/min

Place of Origin GUANGZHOU
Brand Name Amsky
Model Number U848
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard export wooden box
Delivery Time 8 days
Payment Terms T/T
Supply Ability 20 units/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 960KG Condition New Or Used
Plate Size 1160*960 Dimensions(l*w*h) 1290*1150*1050
Voltage 220v Printing Speed 30-150m/min
High Light

150m/Min CTCP Plate Making Machine

,

30m/Min CTCP Plate Making Machine

,

UVCTP Board Making Machine

Leave a Message
Product Description

UV type CTP board making machine, CTCP board making machine, UVCTP computer board making machine



Model CD-48V CD-64V
Material uvctp machine (CTCP machine )
Capacity(cm/min) 20—150
Plate width (mm) 850mm 1150mm
Min. Plate length(mm) 300
Plate thickness(mm) 0.15—0.3
Tank content, developer(L) 38 56
Tank content, wash(L) 13.5 18
Adjustable temperature, dev(°C) 0—40(104°F)0 to 40°C adjustable (32—104°F)
Adjustable temperature, dry(°C)
Water consumption, max(L/min) 8 10.5
Diameter of wash brush (mm) 50
Rotary speed of wash brush 80
Filter(um) 75
Water supply Tap water (min. pressure 1 bar)
Gumming Roller pressing gumming
Diameter of roller 60mm
Dev. replenishment 0—1
Dev. heating-up rate 0.5
Horizontal adjustment Adjustable
Power supply 220V 1φ 50—60Hz 30A
Power consumption (kw/h) 3.5 4
Voltage fluctuation ±10%
Gross weight(kg) 500 650
Net weight(kg) 420 580

Mechanic size(mm)



1260*1520*1040



1525*1520*1040







Packing size(mm) 1360*1620*1250 1625*1620*1250
Optional configuration :plate stack .water filtration system
