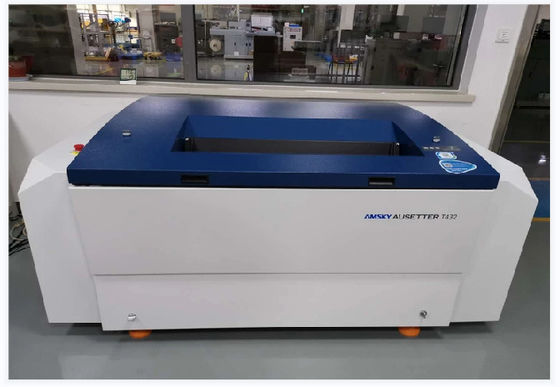

Thermal Plate Making Machine , CTP Computer Plate Making Machine

Place of Origin GUANGZHOU
Brand Name PLATE-CD
Model Number 48
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard export wooden box
Delivery Time 8 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 48 Standard Voltage 220V
Maximum Output 1130*930 Number Of Lasers 48
Machine Configuration Complete Top Configuration Machine Production Time 2018 Years (Customizable New Machines)
High Light

48 channel Plate Making Machine

,

Plate Making Machine 220V

,

Higher Speed CTP Plate Machine

Leave a Message
Product Description

Thermal Plate Making Machine, CTP Computer Plate Making Machine, Computer Plate Making Machine



Model T848 T864 T1200
Exposing Method External Drum
Imaging System 48-channel 64-channel 64-channel
  Discrete 830nm laser diode
Throughput 24/H 29/H 42/H
  1160*960mm, 2400dpi
Plate Sizes Max.1160*960mm
Min.400*350mm
Media Type thermal CTP plate
Plate Thickness 0.15mm to 0.30mm
Resolution Standard: 2400 dpi or 1200 dpi (Optional)
Repeatability 0.01mm
Interface Optical Fiber(Fiber-way)
Plate Loading Automatic or Manual
Net Weight 1100kg
Machine Size
(WxLxH)mm
1450x1350x1290
Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Environment recommended:21-25ºC, Max.18-26ºC, humidity:40-70%



Square spot technology for option

More precise
Higher speed


If customer requires extrely high speed or extremely high resolution, you can consider the laser valve instead of the laser diodes. Laser valve could make square spot and can speed the machine as high as 55 pph.
