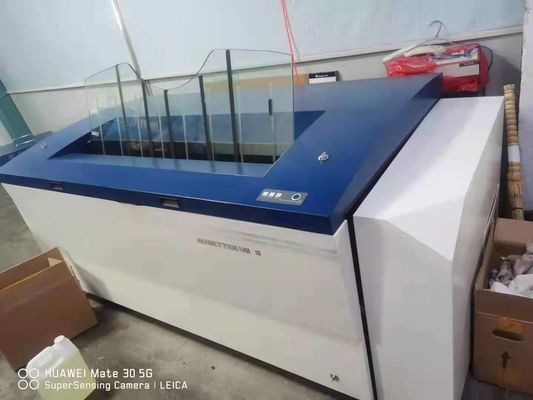

UV CTP Computer To Conventional Plate Machine 405nm Automatically

UV CTP Computer To Conventional Plate Machine 405nm Automatically
UV CTP Computer To Conventional Plate Machine 405nm Automatically

Large Image :  UV CTP Computer To Conventional Plate Machine 405nm Automatically

Product Details:
Place of Origin: SHENZHEN
Brand Name: Amsky
Model Number: T8128
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden box
Delivery Time: 12 days
Payment Terms: T/T
Supply Ability: 20 units/month

UV CTP Computer To Conventional Plate Machine 405nm Automatically

Description
Transmission Status: Automatic Transfer To The Processor Minimum Plate Output Thickness: 0.15
Plate Maximum Output Size: 1130*880mm Weight: 1150KG
Plate: CTCP PLATE Output Resolution: 2400dpi
High Light:

UV Computer To Conventional Plate Machine

,

405nm Computer To Conventional Plate Machine

,

405nm ctcp machine

CTCP plate to machne ,CTCP printing machine ,UVCTP plate machne ,offset plate to machine ,plate to offsrt machine


A conventional computer plate-making machine requires a 50-square-meter room to place the machine. Keep the interior clean and tidy at all times.

Brand new machine, two years warranty, all parts are factory made.

Resolution: 2,400dpi or 1,200dpi optional 2,540dpi or 1,270dpi (variable resolution option: the highest precision can reach 12,800dpi in the circumferential direction)

Repeatability: ±0.01mm

Output interface: optical fiber interface

Environment: allowable temperature: 15-32℃, recommended temperature: 21-28℃, relative humidity: <70%

Different models of machines have different production times and speeds.

Model Thermal UV
T824 T832 T848 T864 T8128 U824 U832 U848 U864 U8128
NO.of lasers 24 32 48 64 128 24 32 48 64 128
Throughput(1130*800) 13 18 23 28 45 13 18 23 28 45
Max.Min.Format MAX:1160*940 MIN:400*350 MAX:1160*940 MIN:400*350
Laser source 830nm 405nm
Resoiution 2400DPI
Loading system Automatic,Semi-Auto(Optional Auto-loader)
Plate requirement CD. 0.15-0.4 (Thermal plate) CD. 0.15-0.4 UV plate
Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60HZ 5.5KVA
Work environment Temperature:20-25℃,Humility:40%-80%
