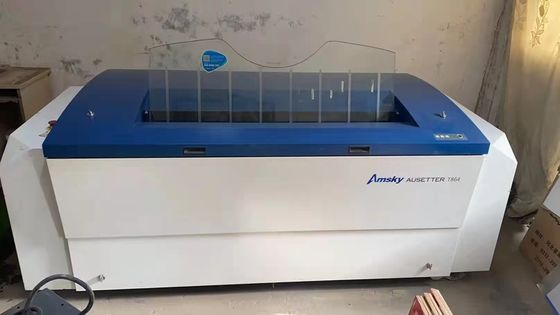

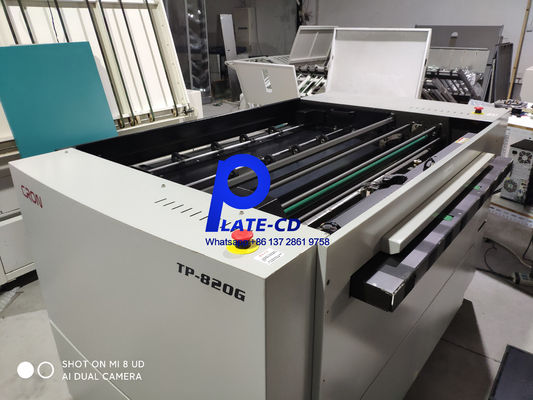

Light Imaging CTCP Printing Machine 50-60HZ UV CTP Machine 2400DPI

Light Imaging CTCP Printing Machine 50-60HZ UV CTP Machine 2400DPI

CTCP Printing Machine

50HZ CTCP Printing Machine

60HZ UV CTP Machine

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Maximum Production Size:
Production Speed:
29 Pcs
Laser Model:
Working Principle:
Ordinary Light Imaging
Operational Requirements:
Indoor 16-24 Degrees Celsius
Product Description

plate making machine CTCP,computer making machne,CTCP plate making machine,plate ctcp machine

Technical Parameters
Model Thermal UV
T824 T832 T848 T864 T8128 U824 U832 U848 U864 U8128
NO.of lasers 24 32 48 64 128 24 32 48 64 128
Throughput(1130*800) 13 18 23 28 45 13 18 23 28 45
Max.Min.Format MAX:1160*940 MIN:400*350 MAX:1160*940 MIN:400*350
Laser source 830nm 405nm
Resoiution 2400DPI
Loading system Automatic,Semi-Auto(Optional Auto-loader)
Plate requirement CD. 0.15-0.4 (Thermal plate) CD. 0.15-0.4 UV plate
Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60HZ 5.5KVA
Work environment Temperature:20-25℃,Humility:40%-80%


Model: CTCP machine (UVCTP machine)
Maximum size: 1130*880mm
At the maximum production size, 29 plates can be produced per hour.
The room needs to be kept at a constant temperature, at 16-24 degrees Celsius, during the operation of the machine, do not open the machine casing, and do not touch it with your hands, to avoid serious accidents caused by laser burns on your arms.
Do a good job of indoor waterproofing, dry.
