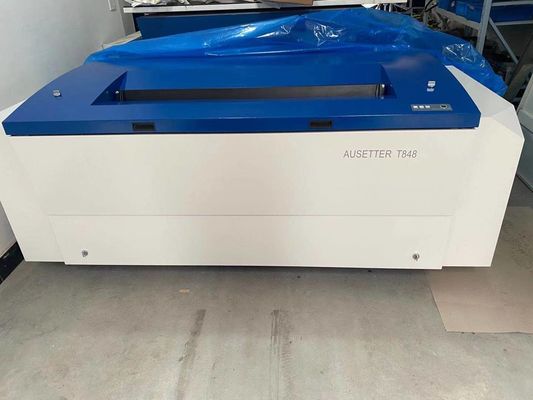

UCVTP board making machine, CTCP computer board making machine, offset CTCP machine

Place of Origin SHENZHEN
Brand Name PLATE-CD
Model Number U848
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard export wooden box
Delivery Time 6 days
Payment Terms T/T
Supply Ability 20 units/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Machine Status Used Machines In 2018 Plate Size 1130*930mm
Speed 24 PCS/H Voltage 220v
Using Plates CTCP Plate Warranty Period 1 Year
Leave a Message
Product Description

UCVTP board making machine, CTCP computer board making machine, offset CTCP machine


Model Amsky(chuangda)
Maximum Plate Format 1130*930mm
Minimum Plate Format 400*350mm
Thickness of Plate 0.15-0.30mm
Resolution 1800 dpi(square pixel)
=2540 dpi(dot pixel)
Light Source UVLED 385nm 405nm
Image exposure System
Exposure Mode Scroll vacuum platform
Exposure Speed 24/hour
Accuracy Repeated +/-5um
Interface Data Ethernet
File Format 1 bit tiff
Size(L x W x H) 200x120x140cm
Net Weight 900KG
Power Supply Single phase 220V. Max power2KW
Environmental Temp.:18-26 degree C, Relative humidity:<70%

Chuangda (Shenzhen) Printing Equipment Co., Ltd

1. Images on PS board, CtCP board, and purple board. The CD CTP system uses dual band diodes, which can generate ultraviolet radiation at 385nm and 405nm. The energy of the laser exceeds 1000mw/mm2. Working on the PS board and CTCP board with minimal energy will be perfect.

2. Integrated bridge to processor. CTP uses a belt to deliver the completed printing plate directly to the processor.

3. Unique DMD technology ensures 1800 dpi square pixels, equivalent to 2540 dpi point pixels.

4. CTP ensures 300 lpi output and AM and FM shielding.

5. Low cost of ownership. The service life of the laser exceeds 25000 hours. Safety and environmental protection.


Our company has a complete technical team and after-sales service team to escort you throughout the entire process
