Place of Origin:
SHENZHEN
Brand Name:
PLATE-CD
Model Number:
CD-RM
Contact Us
Video

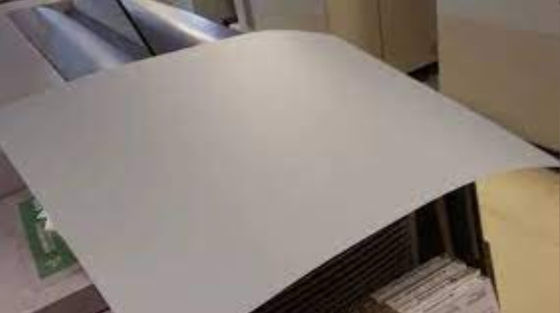

Treatment free CTP plate, Europe specific CTP plate, commercial printing specific CTP plate, offset printing CTP plate
The treatment free CTPP plate is a very good product in the market at present. The biggest advantage is that it is environmentally friendly and does not need chemical washing. It effectively improves the use rate of the product and reduces the production cost. It is the favorite product in the European market
| Type | Non-ablation thermal negative-type |
| Substrate | Electrolyte graining and anodized Al substrate |
| Thickness | 0.15mm/0.30mm |
| Spectrum scope | 800-850nm |
| Platesetter | Various dominant thermal platesetters in the market |
| Low-energy imaging | 130~150mJ/cm2 |
| The period of latent image stabilization | ≤7days |
| Recommended screen method | 1~99 @200lpi AM/ 20u FM and mixture |
| The paper number of start-up | <50 sheets |
| Safety light | 1 hour under fluorescent lamp,no direct irradiation with natural light, 4 hours under yellow light |
| Processing | Without processing, directly on press |
| Run length | 100,000 impressions, up to 60,000 impressions for UV-ink applications.actual run length depends on printing conditions |
| Baking | No recommended |
