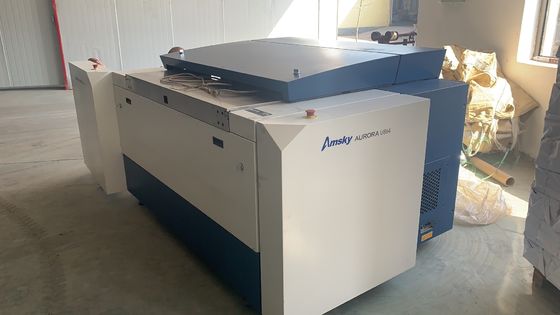

830nm Laser Imaging Offset CTP Plate Making Machine Automatic

830nm Laser Imaging Offset CTP Plate Making Machine Automatic

MOQ: 1
Price: Negotiable
Standard Packaging: Standard export wooden box
Delivery Period: 8 days-28 days
Payment Method: T/T
Supply Capacity: 20 units/month
Detail Information
Place of Origin
GUANGZHOU
Brand Name
Amsky
Model Number
1400
Total Machine Weight:
1300KG
Machine Placement Requirements:
Keep The Ground Fixed
Environmental Requirements:
The Room Needs To Be Kept At A Constant Temperature Of 19 Degrees Celsius.
Working Principle:
Using Laser Imaging
Voltage Requirements:
220V
Maximum Output Size:
1130*880mm
Name:
CTP Printing Making Machine
High Light:

830nm CTP Plate Making Machine

,

1130*880mm CTP Plate Making Machine

,

830nm CTP Printing Machine

Product Description

CTP printing plate making machin,CTP plate machine ,CTP offset machine ,plate printing machine









Model

Thermal

UV

T824

T832

T848

T864

T8128

U824

U832

U848

U864

U8128

NO.of lasers

24

32

48

64

128

24

32

48

64

128

Throughput(1130*800)

13

18

23

28

45

13

18

23

28

45

Max.Min.Format

MAX:1160*940 MIN:400*350

MAX:1160*940 MIN:400*350

Laser source

830nm

405nm

Resoiution

2400DPI


Product Description:

  • Thermal CTP machine, using imported laser, through thermal imaging, to achieve precise production, clear dots.

  • Minimum output range: 400*350. The output speed per hour can be set according to the size of the plate.

  • For any machine, there will be engineer training, and the machine will be operated strictly according to the training content.

  • Brand new machine, two years warranty, all parts are factory made.

  • Second-hand machine warranty for one year. Before delivery, my engineer will do three detailed inspections, replace damaged parts, and give customers a different feeling. Let customers get the best.

Features of CTP Plate Making Machine:

* Reliable laser unit, easy to maintain, sharp printing dots with good quality, high resolution, dot recovery 1%-99% under 300lpi

* The external drum structure keeps the circumferential direction of the plate same during the plate making process and printing process, which ensure the stable dots shape, to achieve the best combination results of plate making and printing.

* CTP system provides optional automatically punch system to realize accurate overprinting.

* The marble base can control the expand with heat and contract with cold effectively, thus ensure the output resolution under any environmental temperature.

* Continuous plate-loading is available with double plate bed. Front unloading & back unloading is optional and the on-line processing operation can be achieved with automatic bridge.

* The independent dust control system keep laser units clean and the reliable output quality.

* The open control system makes laser power adjustable, output speed adjustable, plate parameter adjustable and convenient operation
