Place of Origin:
SHENZHEN
Brand Name:
PLATE-CD
Model Number:
0.15
Contact Us
Only bring the right products to customers, not bad quality to customers.

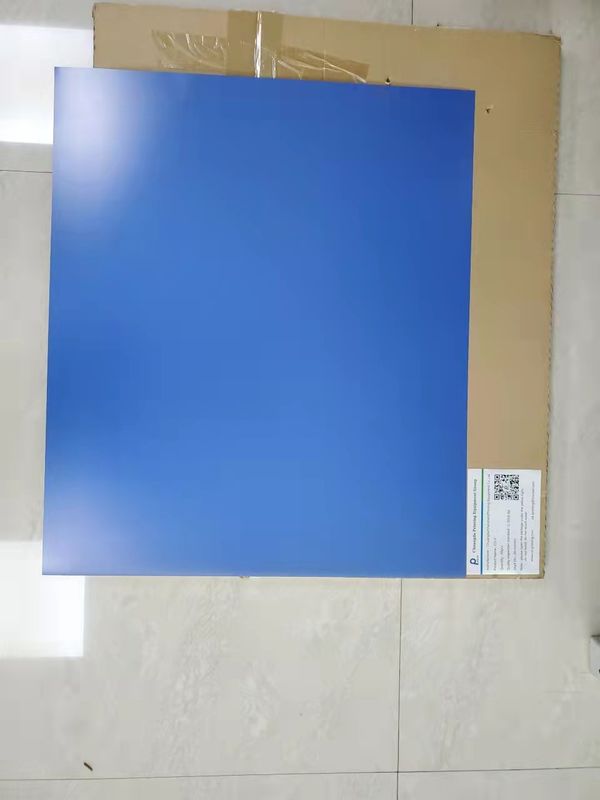

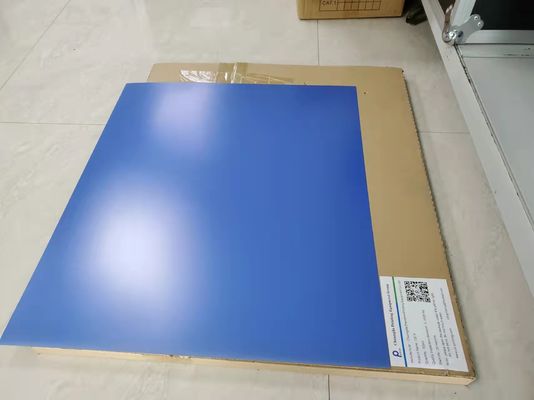

CTP plate, suitable for commercial printing, book printing, color printing. It has clear dots, clear layers, good ink and water balance, and high print resistance. Bright room operation, easy to use, fast inking. Low printing cost, surface color is blue, positive pattern base, electrochemical sand, anodized and hydrophilic treated aluminum plate base. Quick exposure without preheating.
The printing quantity of ordinary ink is up to: 300,000.
The developing temperature and time are determined according to the machine and the usage.
Development time: 22-30 seconds.
Developing temperature: 22-28 degrees.
| Model | CD-R |
| Laser Type | Therma |
| Spectra Sensitivity | 800-850nm |
| Laser energy require | 140-160mj/cm2 |
| Resolution | 1%to99%@250ti |
| Endurance of printing | 100000,impressions unbaked,1,million impressions baked(there is a little change according to the actual printing environment) |
| FM capability | 20um |
| Plate making compatibility | Agfa, Kodak, Heidelberg, Screen and Presstek,Amsky,CORN |
| Working atmosphere | Daylight handling |
| Guarantee period | 20 months |
