| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard export wooden box |
| Delivery Period: | 12 days |
| Payment Method: | T/T |
| Supply Capacity: | 20 units/month |

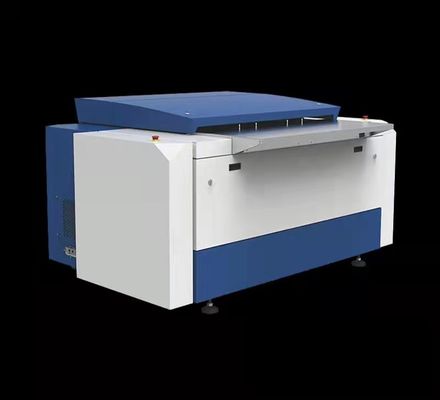

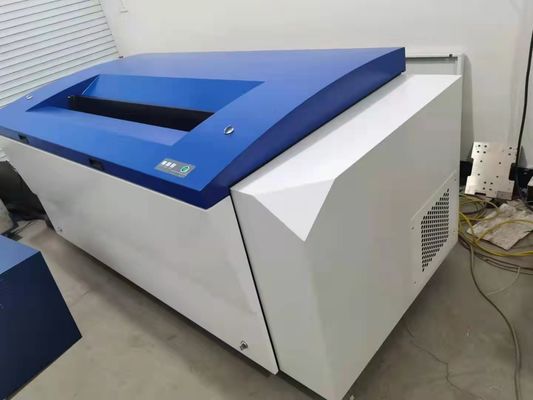

Computer Plate Making Machine (CTP Machine)
The drum is used to tell the drum to run, and the thermal light source is used for imaging.
Model: u848
Maximum production size: 1130*880mm
Minimum production size: 400*350mm
Laser Model: V8
Operation requirements: The machine refuses to open the cover of the machine when it is running to avoid laser burns and damage to the light source of the plate.
Warranty time for new machines: two years, warranty time for second-hand machines: one year.
Applicable sheet model: 0.15 thickness -0.4 thickness.
Resolution: 2,400dpi or 1,200dpi optional 2,540dpi or 1,270dpi (variable resolution option: the highest precision can reach 12,800dpi in the circumferential direction)
Repeatability: ±0.01mm
Output interface: optical fiber interface
Environment: allowable temperature: 15-32℃, recommended temperature: 21-28℃, relative humidity: <70%
Applicable: CTP plate, CTCP plate and double layer CTP plate.
| Model | Thermal | UV | ||||||||
| T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
| NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
| Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||
