Large Format 0.15-0.28mm used CTP Plate Making Machine 830nm Fast Speed

Certification
China Chuangda (Shenzhen) Printing Equipment Group certification
Customer Reviews
The quality of the double layer CTP plate is very good, we plan to sign a long-term cooperation agreement with your company. Please keep this quality.

—— Abdul

Computer platesetter, U864. Although it is a 2018 machine, after receiving the machine, I did not expect that the appearance is not much different from the brand new machine. The interior is very clean.

—— Hussien

I decided to increase the order quantity and my client is very happy that you brought me a high quality CTP machine.

—— Bhelt

Before buying, I am more worried about the follow-up problems of the machine. However, during the one-year cooperation with you, none of the problems I worried about appeared, and you still have a quota engineer to serve me. I will introduce other friends to you

—— Mohumend

Additional order again, double layer CTP plate.

—— Abdul

I'm Online Chat Now

Large Format 0.15-0.28mm used CTP Plate Making Machine 830nm Fast Speed

Large Format 0.15-0.28mm used CTP Plate Making Machine 830nm Fast Speed
Large Format 0.15-0.28mm used CTP Plate Making Machine 830nm Fast Speed

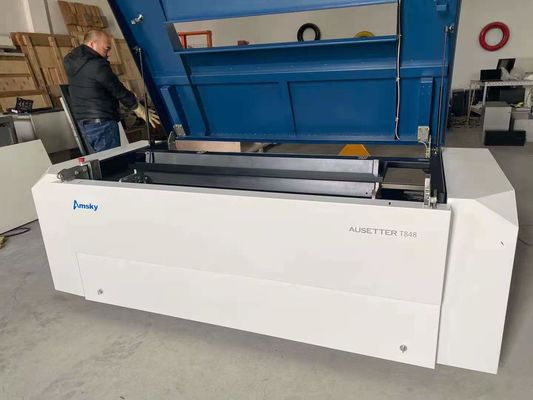

Large Image :  Large Format 0.15-0.28mm used CTP Plate Making Machine 830nm Fast Speed

Product Details:
Place of Origin: GUANGZHOU
Brand Name: A msky
Model Number: t848
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden box
Delivery Time: 8 days-28 days
Payment Terms: T/T
Supply Ability: 20 units/month

Large Format 0.15-0.28mm used CTP Plate Making Machine 830nm Fast Speed

Description
Voltage: 220v Maximum Production Size: 1130*880mm
Use A Plate: Ctp Plate Making Plate Thickness: 0.15-0.28
Weight: 900KG ,Laser Light Source: 830nm
High Light:

0.28mm CTP Plate Making Machine

,

830nm CTP Plate Making Machine

,

0.15mm ctp plate machine

Computer plate making machine CTP machine polymer plate making machine

Technical Parameters
Model Thermal UV
T824 T832 T848 T864 T8128 U824 U832 U848 U864 U8128
NO.of lasers 24 32 48 64 128 24 32 48 64 128
Throughput(1130*800) 13 18 23 28 45 13 18 23 28 45
Max.Min.Format MAX:1160*940 MIN:400*350 MAX:1160*940 MIN:400*350
Laser source 830nm 405nm
Resoiution 2400DPI
Loading system Automatic,Semi-Auto(Optional Auto-loader)
Plate requirement CD. 0.15-0.4 (Thermal plate) CD. 0.15-0.4 UV plate
Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60HZ 5.5KVA
Work environment Temperature:20-25℃,Humility:40%-80%



Computer Platesetters, (CTP Machines)
Using imported laser, imaging through thermal energy, precise and fast.
Up to 29 plates per hour
