New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine

New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine
New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine
New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine

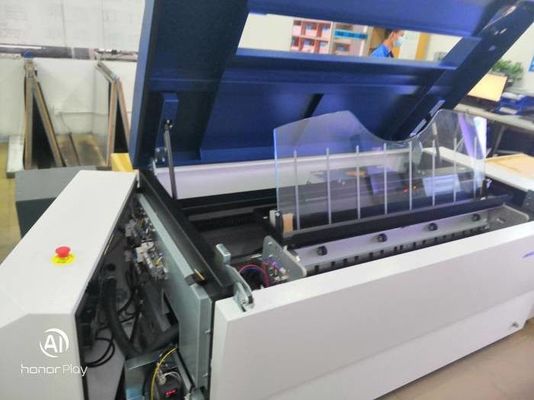

Large Image :  New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine

Product Details:
Place of Origin: SHENZHEN
Brand Name: PLATE-CD
Certification: ISO9001
Model Number: Thermal CTP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $13000-$23000
Packaging Details: Standard export wooden box
Delivery Time: 8 days
Payment Terms: T/T
Supply Ability: 20 units/month
Contact Now

New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine

Description
Condition: New Weight: 1550KG
Voltage: 220v Warranty: 2 Years
Plate Type: Thermal CTP Plates Or, No-rinse CTP Plates Plate Thickness (mm): 0.15-0.30mm
Highlight:

environment-friendly CTP plate making machine

,

thermal CTP plate making machine

,

new CTP machine with warranty

New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine



Product Paramenters



Maximum size of plate: 1,163×940mm
Features: High stability and perfect output quality.

It can meet most printers' demands.

UV plate and thermal plate are available for you to lower production cost.

Furthermore, to improve the production efficiency, 32 channels, 48 channels and 64 channels laser are provided according to
different printing speeds.



Model
U832
U848
U864
T832
T848
T864
Exposing Method
External Drum
Imaging System
32-channel
48-channel
64-channel
32-channel
48-channel
64-channel
Discrete 405nm laser
Discrete 830nm laser
Output Speed
16 plates/
hour
22 plates/
hour
28 plates/
hour
16 plates/
hour
22 plates/
hour
28 plates/
hour
1,030×800 mm, 2,400dpi
Plate Size
Max. 1,163×940 mm, Min. 300×400mm
Plate Thickness
0.15mm - 0.3mm
Resolutions
2,400dpi , 1,200dpi (Option)
Repeatability
0.01mm
Interface
USB2.0 / USB3.0 ( USB2.0 is recommended )
Plate Loading
Manual
Net Weigh
900KG
Device Size
2,320×1,080×960mm( L×W×H )
Power supply
Single phase:220V,Max power(Peak value):4KW
Environment
Operating temperature range:15-30℃ Recommended temperature:21-25℃
Humidity:<70%



New CTP machine, environment-friendly CTP plate making machine, thermal CTP plate making machine 0

While the company is developing, it pays great attention to quality control, abides by the company slogan, abides by national regulations, and WTO regulations. Always adhere to: quality in the world, sincerity wins the future.
Established Shenzhen Branch in 2014, acquired Hong Kong Chuanghui Printing Equipment, and changed its name to: Chuangda (Shenzhen) Printing Equipment Co., Ltd.
Hebei office was established in 2015, Chuangda (Hebei) printing equipment.
In 2019, the Ink Division was established.
Purchase the most advanced testing equipment, tap professional technicians, train professional production operators, and high-quality domestic and foreign sales teams.
The company's products have passed the national ISO9001 quality certification and green product certification. At present, the company's products are exported to Europe, Africa, Southeast Asia and Eastern Europe. Our company always insists on providing customers with the best products and first-class service, and quality is the lifeblood of the company.
Create a high-quality product in the industry and achieve world quality
Lead the world with quality and win the future with sincerity.

www.cd-printing.com
