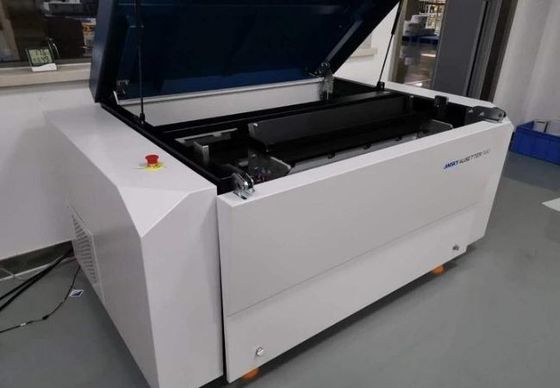

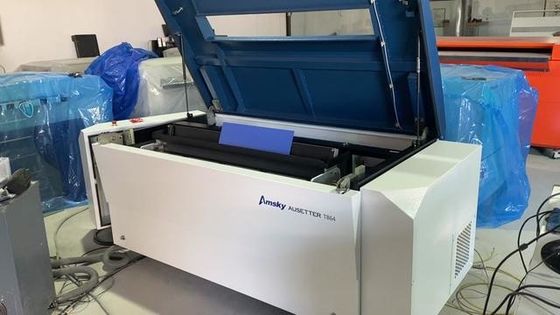

High-speed computer plate making machine, thermal CTP plate making machine, offset printing CTP plate making machine

High-speed computer plate making machine, thermal CTP plate making machine, offset printing CTP plate making machine

MOQ: 1
Price: Negotiable
Standard Packaging: Standard export wooden box
Delivery Period: 6-10 days
Payment Method: T/T
Supply Capacity: 20 units/month
Detail Information
Place of Origin
GUANGZHOU
Brand Name
Amsky
Model Number
T864
Use:
Offset Printing
Type:
CTP Plate, No Rinse CTP Plate
Thickness:
0.15-0.28mm
Plate Big Size:
1130*930
Machine State:
Used Machine
Manufacturing Time:
2018-2021
Product Description

High-speed computer plate making machine, thermal CTP plate making machine, offset printing CTP plate making machine



Product Application

USED Amsky CTP Computer to Plate.CTP.Thermal CTP,UV CTP Plate maker CTCP machine

Computer To Plate CTP
Expose type
Internal Scanning
Laser type
I.R. Semi-conductor Diode
Max.Plate Size
920x670mm
Min.Plate size
470x360
Plate type
thermal Plate
Plate thickness
0.15mm
Resultion
2540DPI
Repeatability
<0.01
Speed
3min/plate
Plate load and unlaod
Semi Automatic
Operate Envirment
Normal room 21-27℃,Humdity <100%



High-speed computer plate making machine, thermal CTP plate making machine, offset printing CTP plate making machine 0

main feature
Second-hand computer to plate CTP
1) The processing software supports PS, PDF files and other various image format files generated by common plate-making software such as In design and Word
2) RIP color separation, so that various images, charts, and texts in the computer plate-making process become bitmap information that the producer can record. This information can be made into CMYK with different precision, with screening angle
3) The imposition processing function enables the image and text to be imposed on the RIPed page, and the folding processing function can automatically calibrate the page number and order according to the paper size. Therefore, its convenience has completely changed the working mode of the traditional make-up performance, making the operation easy, convenient and fast, and improving work efficiency.
4) When CIP3 is under the condition of preset ink volume, RIP work is performed on the page, and at the same time of imposition, the layout printing ink information is interpreted and saved in the PPF file, and then transmitted to the news via the Internet. The printing machine control automatically recognizes and presets the ink, which greatly improves the rationality and accuracy of the ink area distribution of the printing machine
5) The time of the second-hand computer board making machine is only after 2018, because the machine condition will not be very bad. If the machine is beyond 2018, I suggest customers not to buy it, and it needs to spend more money for maintenance.
6) Regarding the warranty of second-hand machines, our company will give you a one-year warranty. Any machine will be inspected and maintained in detail before delivery, and worn parts will be replaced to ensure the state of the machine and the profit the machine brings to customers.
