Contact Person : Summer
Phone Number : 13728619758
WhatsApp : +8613728619758

Thermal computer board making machine, CTP thermal board making machine, CTP board making machine,

Place of Origin SHENZHEN
Brand Name PLATE-CD
Model Number 1450
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard export wooden box
Delivery Time 8 days-28 days
Payment Terms T/T
Supply Ability 20 units/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Number Of Lasers 64/96 Use Offset Printing
Type CTP Plate ,Non Rinse CTP Plate Thickness 0.15-0.3mm
Plate Size 1450*1180 Dot Reporduction 1-99%(200lpi)
Leave a Message
Product Description

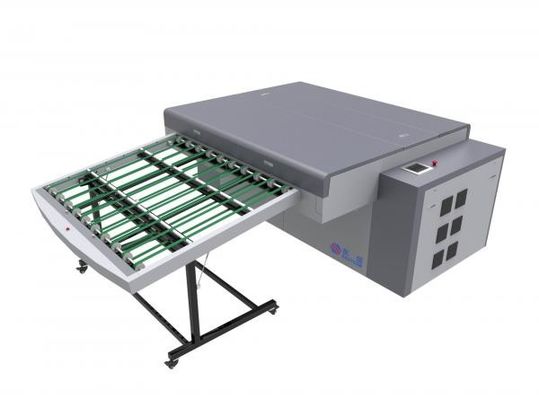

Thermal computer board making machine, CTP thermal board making machine, CTP board making machine,


Maximum Plate Format


Minimum Plate Format 650*550mm
Thickness of Plate 0.15-0.30mm
Resolution 1800 dpi(square pixel)
=2540 dpi(dot pixel)
Light Source  385nm 405nm
Exposure Mode Scroll vacuum platform
Exposure Speed 18 sheets/hour
Accuracy Repeated +/-5um
Interface Data Ethernet
File Format 1 bit tiff
Size(L x W x H) 2736*1750*1350mm
Net Weight 2000KG
Power Supply Single phase 380V. Max power10KW

Temp.:18-26 degree C, Relative humidity:<70%




Thermal computer board making machine, CTP thermal board making machine, CTP board making machine, 0


Product Description


Images on the CTP board and washable CTP board. The PLATE-CD and CTP systems use dual band diodes, which can generate ultraviolet radiation at 385nm and 405nm. The laser has an energy of over 1000mw/mm2. Working on the PS board and CTCP board with minimal energy will be perfect.


2. Integrated bridge to processor. CTP uses a belt to deliver the finished board directly to the processor.


3. Unique technology ensures 1800 dpi square pixels, equivalent to 2540 dpi point pixels.


4. PLATE-CD, CTP ensures 300 lpi output and AM and FM shielding.


5. Low cost of ownership. The service life of the McLantis LED laser exceeds 25000 hours. Safety and environmental protection.
