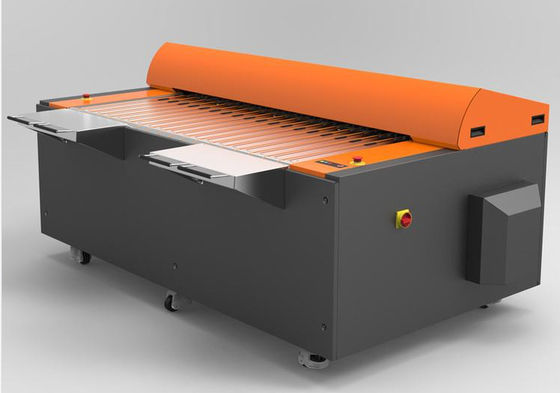

Thermal Sensitive CTP Board Making Machine 0.15-0.3mm Plate thickness

MOQ: 1
Price: $13000-$23000
Standard Packaging: Standard export wooden box
Delivery Period: 8 days
Payment Method: T/T
Supply Capacity: 20 units/month
Detail Information
Product Description
Detail Information
Place of Origin
SHENZHEN
Brand Name
PLATE-CD
Model Number
T1400
Weight:
1250KG
Voltage:
220v
Condition:
New Or Used
Plate Thickness:
0.15-0.3mm
Suitable Plates:
Thermally Sensitive CTP Plates Or Rinse Free CTP Plates
Maximum Output Size:
1650*1460
Highlight:

Computer To Plate Machine 220v

,

CTP Plates Board Making Machine

,

Thermal Sensitive Computer To Plate Machine

Product Description

Thermal sensitive CTP board making machine, CTP board making machine, computer board making machine,



Computer To Plate CTP
Expose type
Internal Scanning
Laser type
I.R. Semi-conductor Diode
Max.Plate Size
1650*1450mm
Min.Plate size
470x360
Plate type
thermal Plate
Plate thickness
0.15-0.3mm
Resultion
2540DPI
Repeatability
<0.01
Speed
3min/plate
Plate load and unlaod
Semi Automatic
Operate Envirment
Normal room 21-27℃,Humdity <100%
USED Computer to plate CTP
1) The process software is supporting PS and PDF file which is generated by kinds of common use plate maker software like In design and Word and also other kinds of Image format file
2) RIP color separation make all kinds of image, diagram and characters during the computer plate making into the recordable bitmap information from the maker. This information can be made as CMYK with different precision which have the screening angle
3)The makeup process function make the image and the characters finish the makeup on the page after the RIP and also the folding hand process function can demarcate the page number and sequence according to the size of the paper automatically.So its convenience totally change the working pattern of the traditional makeup performance, to make the operation easy, convenient and fast so that the work efficiency is improved.
4) When the CIP3 is under the process of the ink amount preset, the RIP work on the page,in the mean time of the makeup performance, the layout printing ink information will be interpreted and keep in the PPF files and then transferred into the press by internet. The press controlled identify and proceed the ink preset automatically,so the rationality and accuracy of the ink area distribution of the press is enhanced greatly



Tags:

Thermal Second Hand CTP Machine,

2540DPI Second Hand CTP Machine,

2540DPI Thermal CTP Platesetter
