| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard export wooden box |
| Delivery Period: | 8 days-28 days |
| Payment Method: | T/T |
| Supply Capacity: | 20 units/month |

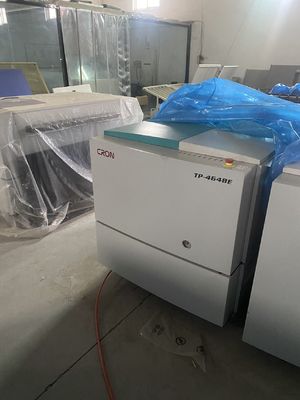

1160*960mm CTP Plate Making Machine Fast Exit Energy Conservation
Computer direct plate making machine, thermal plate making machine, thermal CTP plate making machine,
1. Fast exit time
2. Energy conservation
3. Protect the environment
By using thermal sensitive CTP plate for direct exposure, the cost of the plate is greatly reduced.
Mature and reliable 32-64 channels; Discrete 405nm laser diode technology.
It can reveal very clear and sharp screen points; High impression rate, operating in light room; The service life is up to tens of thousands of hours; Replacement is economical and convenient.
External drum exposure design
The printing plate is clamped and bent in the way closest to the printing machine to reveal high-quality and accurate points. The printing plate outputs 29 pages at a high speed of 1030x800mm per hour.
Dynamic and autofocus
Track the change of surface fluctuation in real time, and adjust the lens forward or backward to ensure that the distance between the exposure point and the lens remains unchanged. Each laser point is exposed with the best focal length to ensure that all screen points are consistent, clear and sharp.
The screen point gain caused by the laser spot size is accurately compensated, thus presenting a perfect gray gradient of 1%~99%.
easy operation
The high-speed USB2.0 interface enables the Ausetter 800 to have the same plug-and-play function as a desktop printer. Auxiliary output management software (Tiff download) can realize seamless with any mature workflow
| Model | CD-64 | CD-48 | CD-32 |
| Exposing Method | External Drum | ||
| Imaging System | 64-channel | 48-channel | 32-channel |
| Discrete 405nm laser diode | |||
| Throughput | 29 plates per hour | 24 plates per hour | 20 plates per hour |
| 1,030mm×800mm 2,400dpi | |||
| Plate Size | Max. 1,130mm×900mm, min.400×300mm | ||
| Exposing Size | Max.1,130mm×884mm, min. 400mm×284mm | ||
| Max Output Power | 150mw | ||
| Plate Thickness | 0.15mm to 0.3mm | ||
| Resolutions | 2,400dpi | ||
| Repeatablity | Continuous exposing for four times or above on the same plate with a temperature of 23°C and humidity of 60%) | ||
| Interface | USB2.0 | ||
| Plate Loading | Semi automatic | ||
| Weight | 1200KG | ||
| Size (W×D×H) | 2,530mm×1,050mm×950mm ( W×D×H ) | ||
| Power Supply | single-phase. 220AC, +6%, -10%, Power Consumption.4KW | ||
| Environment | recommended. 21-25°C,Max. 18-26°C,humidity. 40-70% | ||
