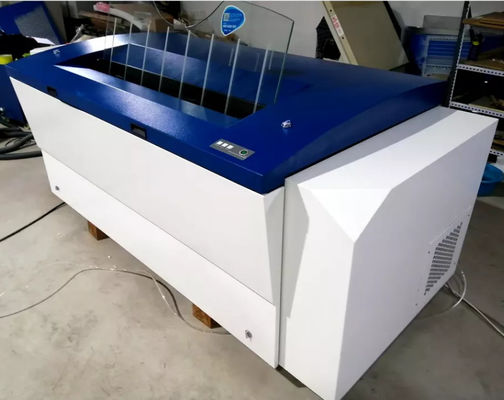

Treatment Free Thermal CTP Machine , CTP Computer Plate Making Machine

Treatment Free Thermal CTP Machine , CTP Computer Plate Making Machine

MOQ: 1
Price: Negotiable
Standard Packaging: Standard export wooden box
Delivery Period: 8 days-28 days
Payment Method: T/T
Supply Capacity: 20 units/month
Detail Information
Place of Origin
GUANGZHOU
Brand Name
PLATE-CD
Model Number
T864
Model Of Plate Used:
CTP Plate Without Treatment
Maximum Output Size:
1160*960
Maximum Production Speed:
28/hour
Storage Requirements:
Indoor 20 ℃ Constant Temperature
Voltage:
220v
Plate Thickness Range:
0.15-0.28
Highlight:

0.28mm Thermal CTP Machine

,

Treatment Free Thermal CTP Machine

,

CTP Computer Plate Making Machine

Product Description

Thermal CTP machine, CTP computer plate making machine, treatment free plate plate making machine

Mode T864
Exposing Method External Drum
Imaging System 64-channel
  Discrete 830nm laser
Output Speed 28 plates/hour
  1160*960mm 2,400dpi
Plate Size Max.1160*960mm
Exposing Size Max.1130*940
Media Type Positive Thermal plate, Positive UV plate
Plate Thickness 0.15mm-0.3mm
Resolutions 2,400dpi
Repeatablity ±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )
Interface USB2.0/USB3.0(Recommended option is USB2.0)
Plate Loading First manual, then autoload
Net Weight 800KG
Device Size 1,900×1,200×1,000mm(W×D×H)
Power supply Single phase:200V-240V; Max power(Peak value):4KW
Environment Recommended temperature: 21-25℃ Allowable temperature: 18-26℃ Humidity: <70%
