Automatic Computer Plate Offset CTP Printing Machine Max Customizable Color

Large Image : Automatic Computer Plate Offset CTP Printing Machine Max Customizable Color

Product Details:

Place of Origin:	SHENZHEN
Brand Name:	PLATE-CD
Model Number:	T1200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$13000-$23000
Packaging Details:	Standard export wooden box
Delivery Time:	8 days
Payment Terms:	T/T
Supply Ability:	20 units/month

Contact Now

Automatic Computer Plate Offset CTP Printing Machine Max Customizable Color

Description

Machine Type:	Thermal CTP 1200	Exterior Color:	Customizable
Maximum Output Size:	1400*1280mm	Output Speed:	29 Pcs
Indoor Requirements:	The Room Is Larger Than 30 Square Meters, Keep It Dry	Warranty Period:	1 Year
Highlight:	Computer Plate CTP Printing Machine , Automatic CTP Printing Machine , Automatic ctp offset machine

CTP plate making machine ,CTP printing plate machine ,CTP offset machine ,Computer plate making machine

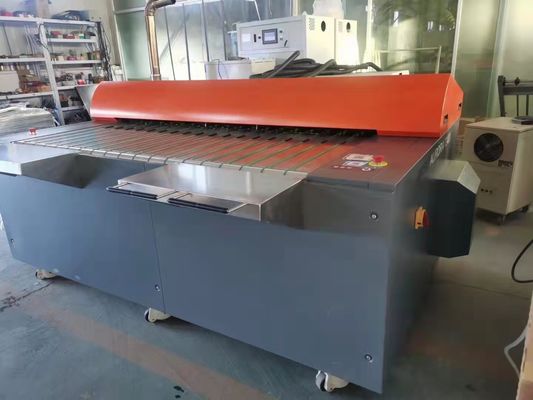

About This Thermal CTP Computer Platesetter:

Appearance color can be customized according to customer requirements.
Model: T1200
Maximum output size: 1400*1280mm
Maximum speed: 34 plates can be output per hour, calculated according to the maximum size
Environmental requirements: keep working at a constant temperature of 18 degrees Celsius.

Automatic Computer Plate Offset CTP Printing Machine Max Customizable Color 0

Technical Parameters
Model	Thermal					UV
Model	T824	T832	T848	T864	T8128	U824	U832	U848	U864	U8128
NO.of lasers	24	32	48	64	128	24	32	48	64	128
Throughput(1130*800)	13	18	23	28	45	13	18	23	28	45
Max.Min.Format	MAX:1160940 MIN:400350					MAX:1160940 MIN:400350
Laser source	830nm					405nm
Resoiution	2400DPI
Loading system	Automatic,Semi-Auto(Optional Auto-loader)
Plate requirement	CD. 0.15-0.4 (Thermal plate)					CD. 0.15-0.4 UV plate
Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60HZ 5.5KVA
Work environment	Temperature:20-25℃,Humility:40%-80%
