MOQ: | 1 |
Price: | Negotiable |
Standard Packaging: | Standard export wooden box |
Delivery Period: | 8 days-28 days |
Payment Method: | T/T |
Supply Capacity: | 20 units/month |

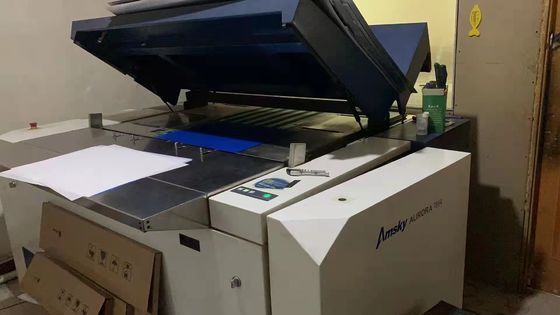

Thermal Computer Plate Making Machine (CTP Machine)
Using photothermal imaging to achieve precise production results
The maximum production range of the machine: 1130*950mm
Minimum production range: 400*350mm
Operate the machine according to the training requirements of the engineer. During operation, please do not open the cover to avoid unnecessary damage.
Technical Parameters | ||||||||||
Model | Thermal | UV | ||||||||
T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
Laser source | 830nm | 405nm | ||||||||
Resoiution | 2400DPI | |||||||||
Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
Power | AC220V,50-60HZ 5.5KVA | |||||||||
Work environment | Temperature:20-25℃,Humility:40%-80% |
|
