| MOQ: | 1 |
| Price: | $25000-$48000 |

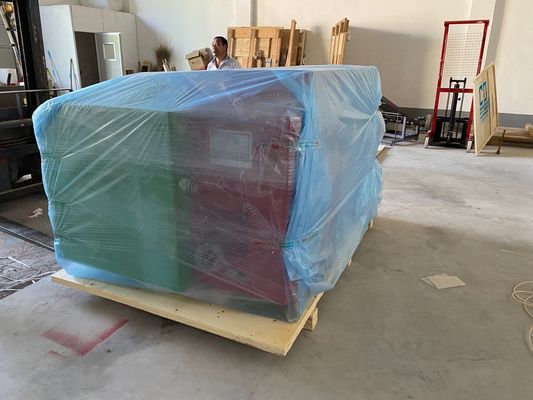

| Standard Packaging: | 2200*1200*1150mm |
| Delivery Period: | 8 days-28 days |
| Payment Method: | T/T |
| Technical Parameters | ||||||||||
| Model | Thermal | UV | ||||||||
| T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
| NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
| Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||

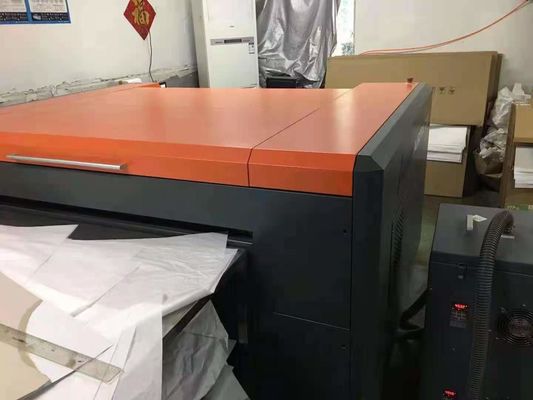

Basic parameters of the machine:
Maximum production size: 1130*880mm,
Minimum production size: 400*350mm
Applicable sheet model: 0.15 thickness -0.4 thickness.
Resolution: 2,400dpi or 1,200dpi optional 2,540dpi or 1,270dpi (variable resolution option: the highest precision can reach 12,800dpi in the circumferential direction)
Repeatability: ±0.01mm
Output interface: optical fiber interface
Environment: allowable temperature: 15-32℃, recommended temperature: 21-28℃, relative humidity: <70%
Applicable: CTP plate, CTCP plate and double layer CTP plate.
Different models of machines have different production times and speeds.
The plate making precision is very high.
About Us:
Chuangda Printing Equipment Group Is a professional printing plate production and sales of plate-making machines.
Founded in 2004, the company covers an area of about 1.6 million square meters and has 3 fully enclosed, fully automated CTCP, CTP and double-coated CTP production lines.
|
|
